Konig Ultragram 15x7 4x100 +30 - Carbon Bronze Metallic
- Free Shipping To Lower 48 States for orders over $150
- Licensed Authorized Dealer

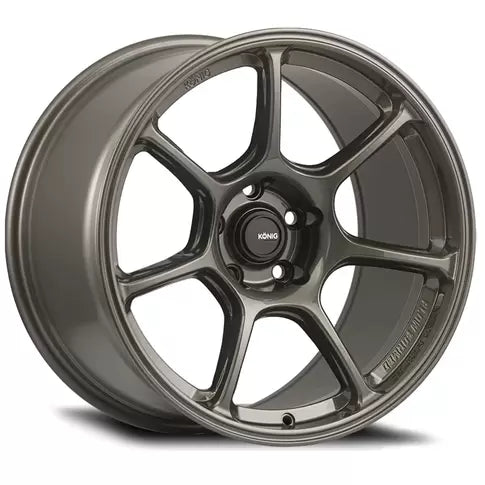

The ULTRAGRAM is Konig s NEWEST Flow Formed wheel and is the result of the most technology they ve ever put into any wheel! Konig has taken every ounce of feedback from all of their high level race programs to develop a wheel that will offer the most amount of longevity and rigidity all while offering an amazing weight savings. The ULTRAGRAM has 7-spoke, motorsport inspired design that is built with flow forming technology. Carbon Bronze Metallic is primarily a darker graphite with bronze undertone.
The Ultragram has a knurl bead seat to prevent tire slippage for high-torque motorsports applications.
Made to newest standard 550kg load rating (1213 pounds each).
Wheel Specs:
Size: 15x7
Bolt pattern: 4x100
Offset: +30mm
Center bore: 73.1mm
Projected weight: 11.8 lbs
Takes optional 73mm hub ring available separately on this site.
1990-2005 Miata brake clearance notes:
- Clears factory brakes and factory optional sport package brakes
- Wilwood 11" big brake kit: requires 5mm spacer
- Goodwin Racing 11.75" V5 big brake kit: clears without spacer
- StopTech 11" big brake kit: clears without spacer
With any wheel Konig develops with Flow Forming Technology, the end result is stronger, lighter and offers greater elongation and shock resistance than a traditional cast design.
Note we STRONGLY recommend our numerous upgraded lug choices with any of our new wheels, stock lugs too short and fat and will scratch these wheels. Unlike the short and fat stock lugs that will result in scratching new wheels, all our replacement lugs have the socket tool bottom on the lug rather than the wheel surface, and are longer for more engagement with stud surface so they also stay tighter.
No fender roll needed for any 1990 through 2005 Miata if you have at least 1.5 negative camber and a reasonable size 205/50 tire such as the popular Continental Extreme Contact Sport. We run MORE than 1.5 negative camber in all our toys, consider 1.5 negative camber a minimum for good handling.
