KONIG HELIOGRAM 15x8 4x100 ET36 MATTE BRONZE *KNURLED BEAD*
- Free Shipping To Lower 48 States for orders over $150
- Licensed Authorized Dealer

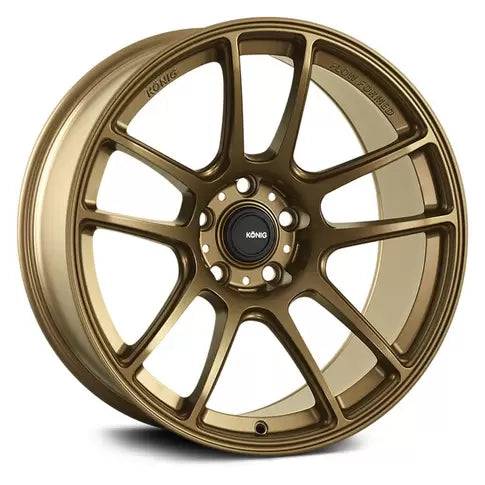

The Konig Heliogram is an all flow formed wheel design from Konig for 2022.
Specs:
*15x8
*4x100
*+36mm Offset
* ~12.34bs
Takes optional 73mm hub ring available separately on this site.
Motorsport inspired, the Heliogram spoke profile design lends to efficient brake cooling as well as exceptional brake caliper clearance. Made to newest standard 550kg load rating (1213 pounds each), weight just 12.34 pounds each.
With any wheel Konig develops with Flow Forming Technology, the end result is stronger, lighter and offers greater elongation and shock resistance than a traditional cast design.
1990-2005 Miata Brake Clearance Notes:
- Clears all factory brakes
- Clears Wilwood 11" BBK
- Clears Stoptech 11" BBK
- Clears our old 11" Version 4 BBK
- Clears our 11.75" Version 5 BBK
- If you have another big brake kit, please contact us to confirm clearance.
Note we STRONGLY recommend our numerous upgraded lug choices with any of our new wheels, stock lugs too short and fat and will scratch these wheels. Unlike the short and fat stock lugs that will result in scratching new wheels, all our replacement lugs have the socket tool bottom on the lug rather than the wheel surface, and are longer for more engagement with stud surface so they also stay tighter.
No fender roll for any 1990 through 2005 Miata if you have at least 1.5 negative camber and a reasonable size 205/50 tire such as the popular Continental Extreme Contact Sport. We run MORE than 1.5 negative camber in all our toys, consider 1.5 negative camber a minimum for good handling.
