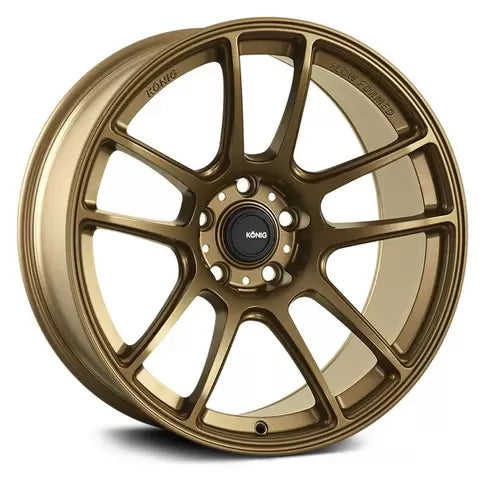

KONIG HELIOGRAM 15x7 4x100 ET35 MATTE BRONZE *KNURLED BEAD*
- Free Shipping To Lower 48 States for orders over $150
- Licensed Authorized Dealer
The Konig Heliogram is an all flow formed wheel design from Konig for 2022.
Specs:
*15x7
*4x100
*+35mm Offset
* ~11.7bs
Takes optional 73mm hub ring available separately on this site.
Motorsport inspired, the Heliogram spoke profile design lends to efficient brake cooling as well as exceptional brake caliper clearance.
With any wheel Konig develops with Flow Forming Technology, the end result is stronger, lighter and offers greater elongation and shock resistance than a traditional cast design.
1990-2005 Miata Brake Clearance Notes:
- Clears all factory brakes
- Wilwood 11" BBK requires 3mm spacer
- Clears Stoptech 11" BBK
- Clears our old 11" Version 4 BBK
- Our 11.75" Version 5 BBK requires 3mm spacer
- If you have another big brake kit, please contact us to confirm clearance.
Note we STRONGLY recommend our numerous upgraded lug choices with any of our new wheels, stock lugs too short and fat and will scratch these wheels. Unlike the short and fat stock lugs that will result in scratching new wheels, all our replacement lugs have the socket tool bottom on the lug rather than the wheel surface, and are longer for more engagement with stud surface so they also stay tighter.
No fender roll for any 1990 through 2005 Miata if you have at least 1.5 negative camber and a reasonable size 205/50 tire such as the popular Continental Extreme Contact Sport. We run MORE than 1.5 negative camber in all our toys, consider 1.5 negative camber a minimum for good handling.
