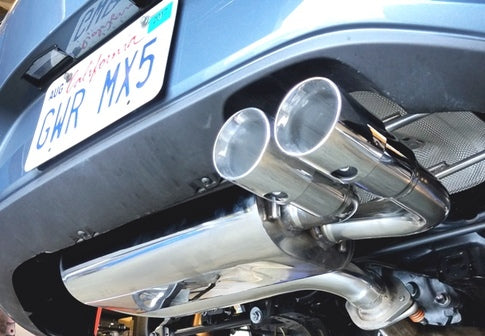

RoadsterSport "SUPER-Q" TWIN TIP Stainless Steel PREMIUM ADJUSTABLE Sound MX5 Miata Exhaust

Following the huge popularity of our NC application "Q" Muffler this Q for ND is once again "Q" for Quiet version. This attenuation design is a premium "NO-DRONE" choice, great for those who want a more throaty sound than stock but still mild. Smooth mandrel bent tubing redirects the flow for a side entrance to the muffler where we engineered a three chamber design. It would be much cheaper to just use a single big muffler with nothing but perforated pipe through the center surrounded by sound absorbing materials, but doing it right with the three chamber design allows us to tailor precisely the FUN sound you want when you push it toward redline, without the harsh drone on decel that the more simple designs make you suffer.

This triple attenuation chamber design muffler is the most mild twin tip of our choices and mellow on an otherwise stock MX5 Miata...about 20% louder than stock when on the gas...with a deep sporty burble anytime you hit the go pedal but nearly as quiet as stock when you just want to cruise.

This triple chamber design features an exclusive 'Helmholtz Resonator' first chamber that massively reduces the standing wave inside the exhaust system, reducing the 'booming' tendency by over 50db inside a top up Miata cabin that is common on many aftermarket Miata exhausts. To create this Helmholtz chamber we outfitted our 2016 ND Gen Miata with a computer and sound analyzer and microphones and drove it under varying conditions and loads and without the stock muffler for the computer to carefully measure the sound spectrum coming out the stock midpipe. We then use that data and some special software to calculate the particulars of the Helmholtz chamber size and valve specs to precisely knock down the frequencies we do not want to hear in the new Miata while allowing the good throaty burble fun sounds to pass through. The result is deep throaty fun, without the drone!

The Helmholtz chamber gives this muffler a dual personality, under decel it is super mild and quiet, yet when you push hard toward redline it gets more fun and racy! With the top down lots of fun throaty burble, but dramatically more tame when the top is up. 24 pounds. In brief, FUN when you want it, and yet totally mild when just cruising top up.

Yes, simple BOLT ON install, just two bolts!

INCLUDES our exclusive baffle cone insert in the Tips which is REMOVEABLE and allows you to set the sound to sporty...or quiet. Also available is our optional packed baffle with which you can quiet it down even more. This system is 10% to 15% louder than the stock Miata muffler on an otherwise stock MX5 Miata exhaust system....and only 20% over stock sound level when used with our RoadsterSport midpipe. Works great with stock midpipe or RoadsterSport Midpipe. Customers planning a header are encouraged to order special Header version of our SuperQ that adds additional resonator on inlet side to best cope with the raspy sounds unleashed by a header swap. Baffles retained by small hex bolt inserted from well under each tip.

Proudly made in the USA with a LIFETIME WARRANTY, emissions legal in all 50 states. Fits all 2016 and newer Miatas with manual or automatic transmission, soft top or retractable hardtop. This Miata exhaust is guaranteed for as long as you own your Miata.

BRIAN'S APPLICATION NOTES. MORE aggressive sound than our other SuperQ choices! Not just two tips on one pipe from the muffler, true twin exit from the muffler means a bit more sound than all single tip versions of SuperQ. And sound frequency balance is very different from each tip, the driver's side tip is essentially skipping final chamber in the muffler. That means you can have some fun mixing your own sound here using baffles in just one tip or the other. And, use of our exclusive baffles will have a big impact on sound reduction with this version, use of baffle in the driver's side tip will have the most reduction in sound level because that is the most direct route out. Result is many levels of sound, lots of control by the end user and ability to dial the result to your own preferences. My recommendation is remove the included baffles before install, my bet is that many never put them back because this muffler is quite mild on otherwise stock MX5.

BRIAN'S INSTALL NOTES:

Installation of this Miata exhaust is SUPER EASY...just two 14mm bolts to loosen! When you open the big box you will find separate foam wrap on the exhaust tip, leave that foam around the tip during your install to protect the polished tips and your car's soft plastic in the exhaust cutout. Use gloves. Note the 'bolts' from the factory are actually studs with springs and nuts and the factory usually jams the nuts on so hard that unbolting it will bring the stud out too. If that does not happen then use a 13mm long socket to pull the stud, or use jam nut technique where both nuts are put on one stud against each other and then wrench used on the inner of the two to back out the stud. Then lube up the stock exhaust hangers with dish soap and yank stock muffler back and forth to work the soap into the rubber hangers and then the muffler will slide off those rubber hangers easily. Then hang the new muffler on the wet and soapy rubber hangers and torque 'bolts' with the springs back in place to 30ft/lbs. Now you can remove foam tip wrap. Option to remove the baffle too, to do so loosen bolt that holds it from under the exhaust tip and use it as handle to shake the baffle loose and then unscrew bolt the rest of the way and pull the baffle (pulling baffle raises the sound slightly). If you don't pull the baffles, put a socket on the nuts and double check they are properly torqued before you drive (with lock washer just 15 ft/lbs is plenty, don't overdo it). Note the muffler to midpipe joint is a ball socket connection for the first time on a Miata, it is designed to move a lot, so please do not add sealants that will gum up that dry ball socket joint. Note that our flange at entrance to muffler is designed as a dual purpose item that allows going to flat gasket if you later go with our 2.5 inch midpipe, at which point the midpipe has a flex joint to replace function of the donut and you get a clean 2.5 inches of flow all the way, which is not possible if we stay same small pipe of stock muffler.

SUMMARY OF FEATURES
Lifetime Warranty.
All Stainless Steel
Dyno tested and proven to make power.
Performance gains in horsepower and torque.
Mild Deep Sound with NO Decel Drone.
Smooth Mandrel formed tube for max flow
User Adjustable sound level using included removeable baffle.
